Aperçu /Produits/Outre de l'inverseur solaire MPPT de grille/Solar Power System Home Sacolar 6kw 48v Split Phase Inverter All In One 120v 240v Pure Sine Wave Off Grid Solar Inverte

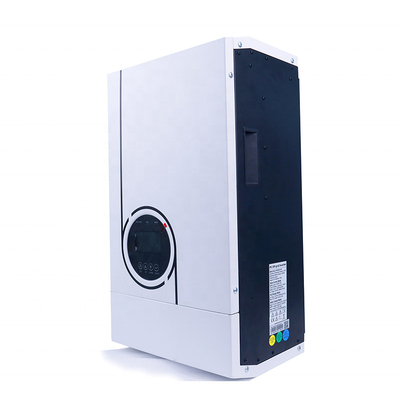

Solar Power System Home Sacolar 6kw 48v Split Phase Inverter All In One 120v 240v Pure Sine Wave Off Grid Solar Inverte

1 piece
MOQ
Solar Power System Home Sacolar 6kw 48v Split Phase Inverter All In One 120v 240v Pure Sine Wave Off Grid Solar Inverte
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: M6000LS-48SP-M
Input Voltage: 48Vdc
Output Voltage: 110V/120V/230V/240V
Output Current: Load
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 650*365*247mm
Type: DC/AC Inverters
Inverter Efficiency: 93%
Certificate: CE
Warranty: 2 Years
Weight: 40KG
Product name: split phase inverter all in one 120v 240v
Application: Solar Power System Home
Inverter type: Off-grid Power Inverter
Protection: Short Circuit Overload Overvolt Overtemp
Display: LCD
Communication: RS485/WiFi/GPRS(Optional)
Keyword: off grid solar inverter 48v
Color: White
Name: pure sine wave solar mppt inverter off grid
MPPT Efficiency: 93%
Informations de base
Certification: CE
Model Number: M6000LS-48SP-M
Conditions de paiement et expédition
Description de produit
Fast to know Sacolar
10+ years solar power product manufacturer
We are your professional supplier of solar system products
If you are an installer,
we have reliable technical support;
If you are a project developer,
we have a professional R&D team;
If you are a trader,
we have stable product quality;
If you are a retail buyer,
we have perfect after-sales service.

200,000 ㎡ production area
1000+MW Capacity
100+ Countries of sale

Professional 10 years

focus on R&D and manufacturing of solar off-grid energy storage systems

Independent R&D capability

a R&D team composed of 50 engineers provide customers with better product solutions

Production capacity

3 million sets of high-quality inverters can be provided to global users every year

Service team

professional pre-sales team, reliable after-sales service support
Products Description

MAIN FEATURES:

1. Rate power: 6kw with 120v/240v split phase output
2. 250v mppt solar charge controller
3. With Low frequency transformer
4. Extremely low self consumption when no load
5. Can disconnect less important load when overload
6. High conversion efficiency
7. With AC couple function to wake up on grid inverter
8. With AC input limitation function
9. Parallel up to 6 units to creat 36kw 10. Inverter mode+AC bypass mode can jointly output
Model
Sunlenty M6000LS-48SP-M
Battery Voltage Range
Rated 48Vdc,range 40~60Vdc
Monitoring Option
WiFi or GPRS
Parallel Option
Yes,up to 6 units
Inverter Output
Output Voltage
104V-110V-115V-120VAC/ 208V-220V-230V-240VAC
Output Frequency
50Hz / 60Hz ±1%
Rated Power
6000VA / 6000W
Surge Power
18000VA / 18000W
Max. Inverting
Efficiency
94%
Zero Load Power
＜35W
Zero Load Power in Power Save Mode
＜20W
Max. PV Input Power
4500W
PV Voltage Range
60~250Vdc
Max.PV Charge Current
80A
Max.PV Charge Efficiency
97.50%
AC Charger
AC Charge Input Voltage Range
154Vac~260Vac
AC Input Frequency Range
45Hz~65Hz
Max. AC Charge Current
60A
Max. total (PV+AC) Charge Current
140A
AC Bypass
Switching Time
＜10ms
AC Input Voltage
Range
154Vac~272Vac (default)
Max. AC Input Current
50A
Others
Protection
Output Short Circuit; Overload; Battery Voltage Too High;Battery Voltage Too Low; Temperature Too High
Enclosure Protection Degree
IP20
Dimension D*W*H (mm)
650*365*247
Net Weight (kg)
38.5kg
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
-20℃ to 50℃ (fan assisted cooling)
Storage Temperature
-40℃~60℃
Why Choose Us
FAQ

1. Why choose us?

A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service

2. How is your technical support?

We provide lifetime online support. Any problem after delivery, we will help solve.

3. Can you get the the solar inverter customized for us ?

Of course, LOGO, machine color, designed unique patterns and packing available for customization.

4. How to become your agent?

Contact us through Alibaba, we will give you the best price and look forward to your greetings.

5. What kind of certificate you have ?

CE certificates.

6. How long of the warranty or guaranty?

For High frequency off-grid solar inverter: 2 years
For Low frequency off-grid solar inverter: 2 years
For Solar Pump inverter: 3 years
For on/off grid inverter: 5 years

7. How to pay for solar controller?

We accept Alibaba Trade Assurance, paypal, T/T.

8. How to choose a right inverter?

Tell us your demand, then our sellers will recommend suitable inverters to you.

9. How long of the delivery time, sample order and wholesale order?

After receiving payment, for Sample order, within 3 days; For wholesale order, 7-15 working days.

10. We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
