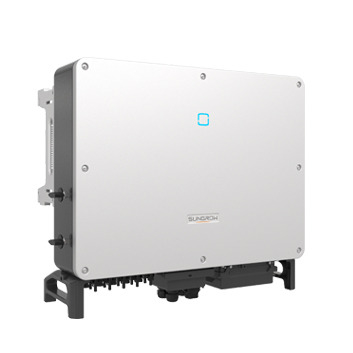

Aperçu /Produits/Outre de l'inverseur solaire MPPT de grille/AC 230/400V Inverter Power Inverter Pure Sine Wave DC , 220/380V 33000W Peak Solar Inverter 33000W 702*595*310mm

AC 230/400V Inverter Power Inverter Pure Sine Wave DC , 220/380V 33000W Peak Solar Inverter 33000W 702*595*310mm

10 sets
MOQ
AC 230/400V Inverter Power Inverter Pure Sine Wave DC , 220/380V 33000W Peak Solar Inverter 33000W 702*595*310mm
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: AY33CX
Input Voltage: 585V
Output Voltage: 3 / N / PE,230 / 400V,220 / 380V, 3 / N / PE,230 / 400V,220 / 380V
Output Current: 55.2A
Output Frequency: 50Hz / 45~55Hz,60Hz / 55~65Hz
Size: 702*595*310mm
Type: DC/AC Inverters
Inverter Efficiency: 98.2%
Certificate: IEC62109- 1,IEC62109- 2,IEC62116,IEC61727
Warranty: 3 Years
Weight: 50kg, 50kg
Product name: String Inverter
Communications: RS485 / GPRS/ 4G/ WiFi(Optional)
Protection Level: IP66
Operating temperature range: -30~+60℃
Type of cooling: Smart Forced Wind Cooling
Topology: Transformerless
MPPT Acount: 3
Self-Consumption at night: ≤2W
Informations de base
Certification: IEC62109- 1,IEC62109- 2,IEC62116,IEC61727
Model Number: AY33CX
Conditions de paiement et expédition
Packaging Details: in carton and pallet,standard international package
Supply Ability: 10000 Set/Sets per Week
Description de produit
Brand
ANYU
Dimension
702×595×310mm
Weight
8.5kg
Guarantee period
5 Years
Type
DC/AC Inverters
Use
On-Grid Solar System
Communications
GPRS / WiFi(Optional)
Products Description
Item Number
AY33CX
AY40CX
Imput (DC)
Max. imput Voltage
1100V
Mix. Imput Voltage/Start Voltage
200V/250V
Rated Input Voltage
585V
MPPT Voltage Range
200 - 1000V
210~480V
Full-load MPPT Voltage Range
550 - 850V
430V-850V
MPPT Account
2
2
Every MPPT Max. Number Of Input Group Strings
1/2
2/2
Max. imput Current
12.5A/25A
50A (25A/25A)
Max. Allowable Current Of Input Terminal
30A
Max. DC Short Circuit Current
120A（3X40A）
160A（4X40A）
Output(AC)
Rated Output Power
33000W
40000W
Max. apparent output power
18700VA
22000VA
Max. Output Power
36300W
44000W
Max. apparent output power
36300VA
44000VA
Max. Output Current
55.2A
66.9A
Rated Grid Voltage
3 / N / PE，230 / 400V，220 / 380V
Grid Voltage Range
312~528V
Rated Grid Frequency/Power Grid Frequency Range
50Hz / 45~55Hz，60Hz / 55~65Hz
Total Current Waveform Distortion Rate
＜3%（Under Rated Output Power)
DC Component
＜0.5%In
Power Factor
＞0.99（Under Rated Output Power)
Adjustable Power Factor Range
0.8（pull ahead）-0.8（Lag）
Number Of Feed Phase
 3/3
Efficiency
Max.efficient
98.6%
98.6%
European efficient
98.2%
98.2%
Protection
Islanding protection
√
DC backconnection protection
√
AC short circuit protection
√
Leakage current protection
√
Power grid monitoring
√
DC switch
√
Set series of test
√

Night SVG function
√
PID repair
Optional
Surge protection
DC secondary/AC secondary
Common parameter

Dimension(Width*High*Depth)
702×595×310mm
782×645×310mm
Weight
50kg
58kg
Isolation method
Without transformer
Level of protection
IP66
Self-Consumption at night
≤2W
Operating temperature range
-30~+60℃（>45℃）
Operating humidity range
0~100%
Type of cooling
Intelligent forced air cooling
 Wind cooling
Highest working altitude
4000m（>2000m）
Screen
LED，Bluetooth+APP
Communication
RS485/GPRS(Optional ) / 4G Optional WiFi Optional
DC terminal type
MC4（MAX.6mm²）
AC electron type
OT / DT terminal（Max.70mm²）
Up to standard
IEC62109- 1，IEC62109- 2，IEC62116，IEC61727，EN 61000- 6- 2，EN 61000- 6- 3，NB / T32004- 2013
