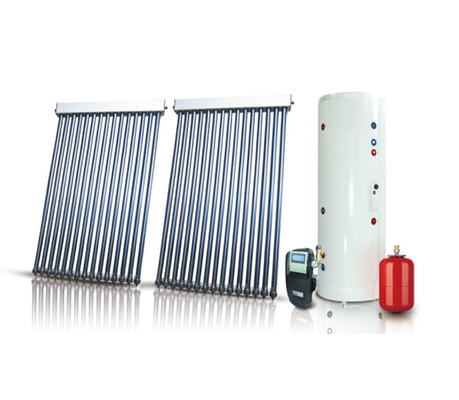

Outdoor 200-1000 Liter Professional Separated Water Heater Solar System Solar Collector

10.0 Sets
MOQ
Outdoor 200-1000 Liter Professional Separated Water Heater Solar System Solar Collector
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
After-sales Service Provided: Field maintenance and repair service, Overseas Call Centers
Warranty: More than 5 years, 5 Years
Application: Outdoor, Hotel, Garage, Commercial, Household
Power Source: Solar
Type: Evacuated Tube
Circulation Type: Indirect / Closed Loop (Active)
Connection Type: Split
Installation: Freestanding
Housing Material: Aluminum
Capacity: 200
Model Number: UNP-SP-100
Assistant heating system: DC 12V Electrical heating element
Heater Input: DC 12V Solar panel
Battery backup: 2-3 days.
Sample: under 5 units is not allowed
Product name: Split Solar Water Heater
Inner tank: Food Grade Stainless Steel SUS304-2B
Outer tank: Galvanized Steel/0.5mm
Color: White
Material: SS316
Certification: ce, SRCC, EN12975
Informations de base
Certification: ce, SRCC, EN12975
Model Number: UNP-SP-100
Conditions de paiement et expédition
Packaging Details: Standard exporting cartons...
Supply Ability: 3000 Set/Sets per Week
Description de produit

Model UNP-SP 100-12 UNP-SP 100-20 UNP-SP 100-24 UNP-SP 100-36 UNP-SP 100-48 UNP-SP 100-60
Collector Model UPSCP-ADN1/1 UPSCP-ADN2 UPSCP-ADN3 UPSCP-ADN1 UPSCP-ADN3 UPSCP-ADN2
1PC 1PC 1PC 2PC 2PC 3PC
Tank Capacity 100L 150L 200L 300L 400L 500L
Absorb area 1.78m² 2.96m² 3.56m² 5.34m² 7.12m² 8.88m²
Coil/Copper No No No One One Two
20GP/Sets 42 30 26 18 13 10
Features

Electric booster,temperature controler value,P/T valve,anode,one-way,a TCO cap,
temperature sensor.
Overheat protection,it includes protection of solar collector and electric booster.
Pressure limitation,it functions by automatically sensing the pressure and
temperature of the parts,so as to ensure the normal operation of the system.
Anti-freezing,it is realized through the circulation of working fluid to make sure the safety

of the operation at the limited temperature.

Cat.No. UPSCP-ADN1/1 UPSCP-ADN1/2 UPSCP-ADN1 UPSCP-ADN2 UPSCP-ADN3 UPSCP-ADN4
Model 58/1800/12 58/1800/15 58/1800/18 58/1800/20 58/1800/24 58/1800/30
Area 1.78m² 2.22m² 2.66m² 2.96m² 3.55m² 4.44m²
Daily output 85-120L 120-150L 150-175L 160-200L 200-250L 240-280L
Manifold

Adjustable moving manifold by rockwool insulation,heat pipe by 100% T2 copper

,at thickess 0.7mm minimum.

Unique Point 1# Frame buttom cup is disassembly within high quality of nylon.
Working Condition -45℃~90℃ -45℃~90℃ -45℃~90℃ -45℃~90℃ -45℃~90℃ -45℃~90℃
QTY/20P 130pcs 115pcs 78pcs 75pcs 70pcs 57pcs
Features

Silicon acid caps as additional heat protection of PIR foam in the mainframe.
All sealings in the collector are made of silicone or

similar heat resistance material.
Installation angel from 0 degree to 65 degree within 1.8-2.2mm thickness of aluminim material.


China low price split pressure evacuated tube solar water heater system

One of the challenges to living off-grid is getting hot water,Off Grid Solar Water Heater means without grid power system, the traditional solar water heater system is within an assistant heating backup system, like gas, boiler, or electricial heater itc.
Now in terms of off grid solar water heater, which is a system can run without sun, it is meaned during the day time, we can store the electrical power into battery, and using that power to heat our solar water heater at nights or early morning.

By our DC Electricial Heating element, you can have the hot water anytime you want it. At a sunshine day, the solar collector will heat the water into hot, and store the enengy by solar panel into the battery as backup heating energy source for the electrical heating element.

Features
-Domestic and commercial hot water, Radiant Floor Heating
-Can be configured for drain-back (end ports)
-Suitable for mains pressure (<800Kpa)
-Suitable for potable water
-Ideal for commercial heating applications
-Caravan Parks,Hotels,Schools,Public Showers/Kitchens,Restaurants
-Installation on almost any wall or roof surface
-Operating costs are low because solar system needs very little maintenance
-Non-polluting,solar collectors reduce CO2 emissions
-Unlike limited resources,the sun will always be around and available for use

Main:5years Of full system and 15 years vacuum tubes
Warranty given to the purchaser by company shows that a product is reliable and free from known defects and that seller

will,without charge,repair or replace defective parts within a given time limit and under certain conditions.Ensun

commitment to our customers is to provide the highest quality in products and servies.If your product does not work

properly,please contact us to help determine if your product is defective.Details as follow:
1.The following causes are not covered by standard warranty period:
(1)Damage arising from improper transportation,storage;
(2)Damage arising caused by the users'disasembling;
(3)Damage arising from irresistible calamities;
(4)Ensun shall not be liable for loss;
(5)Ensun standard warranty does not cover any product,damages or injuries resulting from misuse,neglect,normal

expected wear,chemically caused corrosion,improper installation or operation to fatory recommendation.
(6)Ensun shall not be liable for the result:equipment that has been modified,stampered with or altered without authorization.
2.The following causes are covered by standard warranty period:
If fault occurs,please notify us with a complete description or picture of the alleged malfunction,including the date of

purchase from us,installation and operating condition of subject product.
We will subsequently review this information,and give you the feedback at once.
(1)During our warranty period,the components which don't work can be changed free;and after warranty period,the

components which dont's work can be changed at a low cost price;
(2)The warranty product should be shipped within your next order.
