JD10P6C | 240*350*17mm |
JD20P6C | 420*350*17mm |
JD30P6C | 550*350*17mm |
JD40P6C | 650*390*20mm |
JD50P6C | 650*480*25mm |
JD60P6C | 650*540*25mm |
JD80P6C | 700*650*25mm |
JD100P6C | 860*650*30mm |

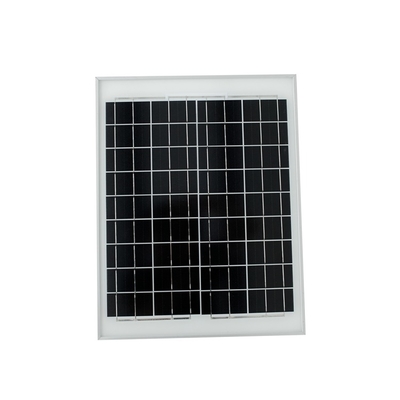

Polycrystalline 5-160w small component parameter table
Model Number | JD5P6C | JD10P6C | JD20P6C | JD30P6C | JD40P6C | JD50P6C |
PeakPower Watts(Pmax/W) | 5W | 10W | 20W | 30W | 40W | 50W |
Maximum Power Current(Imp/A) | 0.28 | 0.56 | 1.11 | 1.67 | 2.24 | 2.78 |
Open Circuit Voltage(Voc/V) | 22.0 | 22.32 | 22.32 | 22.39 | 22.32 | 22.48 |
ShortCircuit Current(Voc/V) | 0.31 | 0.61 | 1.22 | 1.81 | 2.43 | 2.97 |
Power Tolerance | 0~+5W |
Model Number | JD60P6C | JD70P6C | JD80P6C | JD90P6C | JD100P6C | JD110P6C |
PeakPower Watts(Pmax/W) | 60W | 70W | 80W | 90W | 100W | 110W |
Maximum Power Current(Imp/A) | 3.3 | 3.85 | 4.5 | 5.07 | 5.57 | 6 |
Open Circuit Voltage(Voc/V) | 22.7 | 22.7 | 22.2 | 22.2 | 22.4 | 22.7 |
ShortCircuit Current(Voc/V) | 3.51 | 4.09 | 4.82 | 5.39 | 5.94 | 6.43 |
Power Tolerance | 0~+5W |
Model Number | JD120P6C | JD130P6C | JD140P6C | JD150P6C | JD160P6C |
|
PeakPower Watts(Pmax/W) | 120W | 130W | 140W | 150W | 160W |
|
Maximum Power Current(Imp/A) | 6.6 | 7.07 | 7.53 | 8.78 | 8.78 |
|
Open Circuit Voltage(Voc/V) | 22.7 | 22.78 | 22.88 | 22.6 | 22.6 |
|
ShortCircuit Current(Voc/V) | 7.02 | 7.55 | 8.00 | 9.22 | 9.22 |
|
Power Tolerance | 0~+5W |
